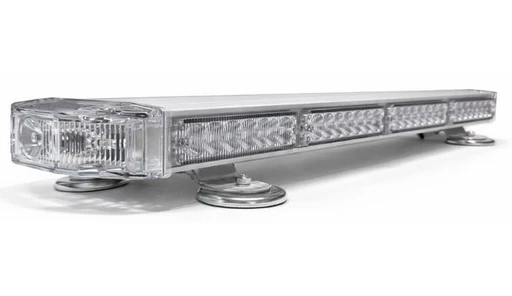

Mirage 20 TIR LED Mini Light Bar

The Mirage 20 TIR LED Mini Light Bar is built for buyers who want a real step up in rooftop warning coverage, output, and vehicle presence without moving into a much larger full-size bar. With 54 Generation V 3-watt LEDs, 162 watts of total output, TIR optics, 36 flash patterns, Dual Memory, and full 360-degree warning capability, the Mirage 20 delivers stronger warning performance than smaller compact mini bars while still staying practical for a wide range of vehicles.

At 20.75 inches long and 7 pounds, this model hits a very usable middle ground. It feels substantial enough for buyers who want a serious rooftop warning solution, but it is still manageable for one-person setup, removal, and transfer between compatible vehicles when needed. That makes it a strong fit for pickup trucks, SUVs, work vans, tow and recovery vehicles, utility trucks, construction vehicles, volunteer-response vehicles, and municipal support applications where buyers want more warning presence than a short mini light bar can provide without stepping up to a larger rooftop unit.

What makes the Mirage 20 stand out is its balance of stronger output, better optics, upgraded controls, more flexible flash-pattern access, real professional-use compliance, removable magnetic convenience, hard-mount flexibility, and low-profile fitment. Choose this model when a smaller mini light bar feels too limited, but a larger rooftop bar feels like more size, weight, and visual bulk than the vehicle or the job really needs.

Lighting and Performance

• Product Type: Magnetic Mini Light Bar
• Model: Mirage 20 TIR LED Mini Light Bar
• Size: 20 Inch / 20"
• Dimensions: 20.75" L x 5.75" W x 2.5" H
• Weight: 7 lbs
• LED Count: 54 LEDs
• LED Rating: Generation V 3-Watt LEDs
• Total Output: 162 Watts
• Lens Type: TIR Optics Lens
• Flash Patterns: 36
• Light Coverage: Full 360-degree rooftop warning
• Color Formats: Standard solid-color and split-color style configurations
• Color Configurations: 13 standard color options

Power and Control

• Power Voltage: 12V DC / 12 Volt DC
• Memory Function: Dual Memory with non-volatile last-pattern recall
• Power Connection: Upgraded cigarette lighter plug included; can also be hardwired
• Control Type: Cigarette lighter plug with built-in power and flash-pattern controls
• Cable Length: 12 ft
• Max Amp Draw: 7 amps

Mounting and Build

• Mount Type: 2 mounting legs with 4 magnets
• Holding Strength: 40 lbs per magnet, 160 lbs total
• Installation Type: Removable magnetic rooftop mount
• Permanent Mount Option: Optional hard-mount kit available
• Profile: Low-profile 2.5-inch installed height
• Housing Material: Aluminum housing
• Lens Material: Polycarbonate lens
• Weather Resistance: IP67
• LED Lifespan: Up to 100,000 hours
• Warranty: 5-Year LED Warranty / 2-Year Components Warranty

Compliance

• Meets or exceeds SAE J845
• Meets or exceeds SAE J595
• Meets SAE Class 1
• Meets or exceeds California Title 13 requirements

A Noticeable Step Up From Smaller Mini Bars

The Mirage 20 is designed for buyers who want more than basic compact warning coverage. With 54 Generation V 3-watt LEDs and 162 watts of total output, it gives you a stronger, more substantial warning signature than shorter mini bars while still staying easier to fit and easier to manage than many larger rooftop options.

TIR Optics for a More Controlled Warning Signal

The Mirage 20 uses TIR optics to help deliver a cleaner, more controlled warning pattern around the vehicle. That matters for buyers who want a bar that performs like a professional warning tool rather than a basic light with less disciplined output. For roadside work, fleet visibility, volunteer response, tow operations, and utility applications, that stronger light control helps create a more credible real-world warning presence.

36 Flash Patterns With Upgraded Dual Memory

This updated Mirage 20 includes 36 flash patterns and Dual Memory, which gives the bar more flexibility and better day-to-day usability than older or more limited mini light bar setups. Dual Memory helps repeat users get back to preferred operating modes faster, while non-volatile last-pattern recall adds consistency for vehicles that rely on the light regularly.

Practical Power for Real Vehicle Use

The Mirage 20 combines strong warning output with a setup that still makes sense for everyday use on work vehicles and support units. Its 12V platform, upgraded cigarette lighter plug, 12-foot cord, and 7-amp max draw support serious visibility without pushing the buyer into a more complicated full-size system. That makes it a strong fit for users who want substantial rooftop warning performance while keeping installation and operation straightforward.

Bigger Coverage Without Jumping to an Oversized Bar

One of the biggest strengths of the Mirage 20 is size positioning. It gives the buyer a meaningful increase in visibility, width, and warning presence over a smaller bar, but still avoids the added footprint and visual bulk of a much longer rooftop unit. That makes it a smart middle-ground option for buyers who want more coverage without overcommitting.

Better Value Than Basic Low-End Mini Bars

The Mirage 20 is not just about more LEDs. Its combination of Generation V output, TIR optics, upgraded memory functions, professional-grade compliance, removable magnetic mounting, optional hard-mount path, low-profile fitment, and weather-resistant construction gives buyers a more complete ownership story than many lower-cost mini bars that compete mainly on price.

Fast Magnetic Rooftop Setup

The Mirage 20 is designed for removable rooftop use with 2 mounting legs and 4 magnets. This makes it a strong option for buyers who want fast setup, easier transfer between vehicles, and the convenience of a magnetic warning light that can be deployed without a full permanent install from day one.

Strong Magnetic Holding Power

Each magnet is rated at 40 lbs of holding strength, for 160 lbs total. That gives the Mirage 20 a stronger removable mounting foundation than many buyers expect from a mini light bar and helps support better confidence during temporary-use and job-based deployment.

Manageable for One-Person Setup

At 7 lbs, the Mirage 20 feels substantial enough to inspire more confidence than many lightweight compact bars, but it is still manageable for one-person placement, removal, and repositioning in normal use. That is an important advantage for buyers who want stronger rooftop warning performance without stepping into a larger, heavier bar that feels less practical to move between vehicles.

Hard-Mount Path for More Demanding Use

An optional hard-mount kit is available for buyers who want a more committed install. This matters because the Mirage 20 can serve as a removable magnetic mini light bar for flexible use, while still giving buyers a path to a more permanent setup if the vehicle is going to stay equipped on a regular basis.

Best Practice for Regular Higher-Speed Driving

The Mirage 20 is a practical magnetic warning solution for buyers who want quick rooftop deployment, but a hard-mount setup is the better choice for regular high-speed driving and more permanent everyday use. Buyers who know the bar will live on the vehicle full time should strongly consider the hard-mount path from the start.

Surface Prep and Paint Guidance

As with any magnetic rooftop warning light, the mounting surface should be clean, compatible, and free of trapped dirt or debris before installation. That helps improve consistency, protects the contact area, and reduces the chance of paint-surface issues caused by dust or grit getting trapped under the magnets.

The Mirage 20 includes 36 flash patterns to support a wide range of warning needs across roadside work, utility visibility, volunteer response, construction activity, tow and recovery use, municipal support, security applications, and general commercial fleet operation. This gives buyers more real flexibility than a basic mini light bar with limited operating modes.

Dual Memory is one of the most useful upgrades on this version because it helps repeat users get back to preferred flash settings faster. For operators who use the light regularly across roadside stops, work zones, service calls, or support response, that means less time cycling through modes and a more consistent setup from one use to the next. Non-volatile last-pattern recall adds another layer of convenience by helping the bar remember the previous setting when powered back on.

The upgraded cigarette lighter plug keeps operation simple for buyers who want straightforward plug-and-play use while still giving the Mirage 20 a more modern control experience. It is a strong fit for buyers who want fast setup and easier in-cab access to power and pattern changes without immediately moving to a dedicated hardwired controller.

The Mirage 20 is a strong fit for:

• Pickup trucks
• SUVs
• Work vans
• Service vehicles
• Tow and recovery vehicles
• Utility trucks
• Construction vehicles
• Municipal support vehicles
• Volunteer-response vehicles
• Commercial fleet vehicles

It is especially well suited for:

• Tow and recovery operators
• Utility and service technicians
• Construction crews
• Volunteer firefighters
• POV users where lawful
• Municipal support teams
• Security teams
• Roadside assistance vehicles
• General work-truck and support-fleet applications

This model makes the most sense when the buyer wants a rooftop warning light with stronger coverage and more presence than a compact short bar, but does not need the larger footprint of a much longer rooftop unit. It is also a smart option when the buyer wants a more visible external warning solution than dash, visor, or hideaway lighting can provide from inside the vehicle.

For many pickup trucks, SUVs, service vehicles, and work-focused support units, the Mirage 20 lands in a very practical size range. It gives the vehicle more warning width and more visual authority than a smaller bar, but still stays easier to fit, easier to remove, and less imposing than a much larger rooftop system. That balance is a major reason it works so well as a middle-ground option.

The Mirage 20 is available in 13 standard color options, giving buyers strong flexibility across commercial, roadside, volunteer-response, utility, and fleet warning applications.

Available standard configurations include:

• Amber / Amber
• Amber / White
• Blue / Blue
• Blue / White
• Blue / Amber
• Red / Red
• Red / White
• Red / Blue
• Red / Amber
• Green / Green
• Green / White
• Green / Amber
• White / White

Amber-focused configurations are often the strongest choice for construction, utility, service, tow, roadside, and work-truck applications where broad warning visibility and practical commercial use matter most. Blue-oriented and mixed emergency color combinations can be a strong fit for volunteer and responder-style use where legally permitted. Red, blue, amber, white, and green combinations give the Mirage 20 broad flexibility across different vehicle roles, always subject to local law, department policy, and intended use.

• Mirage 20 TIR LED Mini Light Bar
• Upgraded cigarette lighter power plug
• 12-foot power cord
• 2 mounting legs
• 4 magnets

This package gives buyers the core components needed for fast magnetic rooftop deployment right away while still allowing the option to move toward a hardwired or permanent-mount setup later.

Is the Mirage 20 bright enough for daytime roadside use?

Yes. With 54 Generation V 3-watt LEDs, 162 watts of total output, and TIR optics, the Mirage 20 is built to deliver a stronger warning presence than smaller compact mini bars. It is a solid choice for buyers who need real daytime visibility from a removable rooftop warning light.

Why choose the Mirage 20 over the Mirage 12?

Choose the Mirage 20 if you want more coverage, more roof presence, and a stronger overall warning signature. It is a better fit when a 12-inch bar feels too small for the vehicle or the job, especially on pickup trucks, SUVs, work trucks, and support vehicles that benefit from a more substantial rooftop presence.

Why choose the Mirage 20 instead of a larger light bar?

Choose the Mirage 20 when you want a middle-ground size that delivers stronger visibility than compact mini bars without moving to the larger footprint of a much longer rooftop bar. It is a smart option when you want more warning performance without making the setup feel oversized.

Is the Mirage 20 easy for one person to handle?

Yes. At 7 lbs, the Mirage 20 feels more substantial than a very small compact bar, but it is still manageable for one-person setup and removal in normal use. That makes it a practical choice for buyers who want stronger warning presence without stepping into a larger, heavier rooftop system.

Is the Mirage 20 magnetic mount meant for permanent everyday highway use?

For buyers planning regular higher-speed driving or long-term full-time installation, the better choice is to hard mount the bar. The magnetic setup is excellent for removable use and quick deployment, but a permanent-mount path is the more appropriate solution for more demanding everyday use.

Will the magnets hold securely?

The Mirage 20 uses 4 magnets rated at 40 lbs each for 160 lbs total holding strength. Proper installation on a clean, compatible steel surface is still important for the best real-world performance.

Will the magnets scratch my roof?

Keeping the roof and the magnet contact area clean before mounting helps reduce the chance of paint-surface issues caused by trapped dirt or debris. Basic surface prep matters with any magnetic rooftop light.

Is a 20-inch mini light bar a good size for a pickup truck?

Yes. The Mirage 20 is especially well suited for pickup trucks because it gives the vehicle a stronger rooftop warning presence than smaller bars without pushing into the larger footprint of a much longer unit. That makes it a practical fit for many work trucks, service pickups, and support vehicles.

Can this unit be hardwired?

Yes. The Mirage 20 includes an upgraded cigarette lighter plug for immediate use, but it can also be hardwired for buyers who want a cleaner or more permanent installation.

Is this a better choice than dash or visor lights?

If you want fuller rooftop 360-degree warning visibility from one external unit, yes. Interior warning lights can still work in some setups, but the Mirage 20 offers a more complete external warning signature that is easier to notice around the vehicle.

Who is this model not best for?

The Mirage 20 is not the best choice for buyers who specifically need advanced directional, takedown, or alley-light style functionality, and it may also be more bar than necessary for very small rooflines that are better suited to a shorter compact model.
